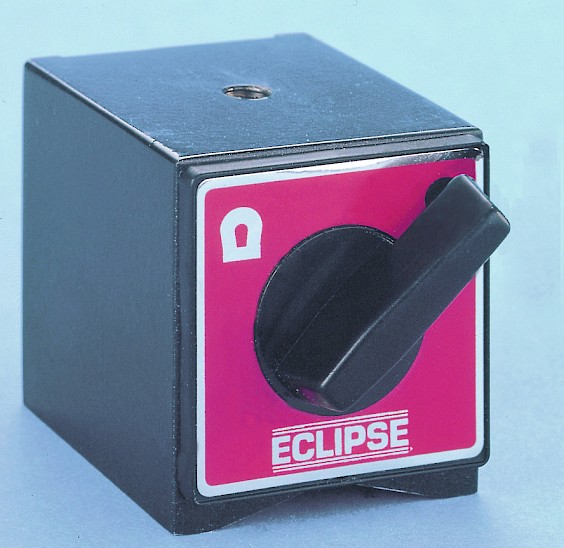

Magnetic Bases with Toggle Switches
Ideal for mounting fitments to hold measuring or inspection equipment
- Toggle switched magnetic bases to hold Eclipse Magnetics fitments for inspecting workpieces.
- Can be located on any ferrous surface to provide rigid support
- Magnetic on 3 sides
- Can clamp onto curved and flat surfaces
- A range of fitments also available
产品型号
| 产品型号 | Length (mm) | Width (mm) | Height (mm) | Screw Thread (mm) | Hold (kg) | Weight (kg) |
|---|---|---|---|---|---|---|

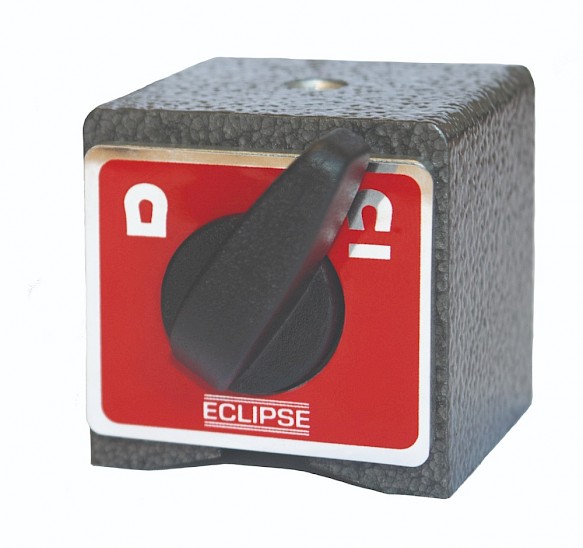

| E905WF/50 | 40 | 40 | 40 | M6 | 50 | 0.405 |
| E905WF | 65 | 50 | 55 | M8 | 80 | 0.960 |
| E905WF/100 | 75 | 50 | 55 | M8 | 100 | 1.200 |

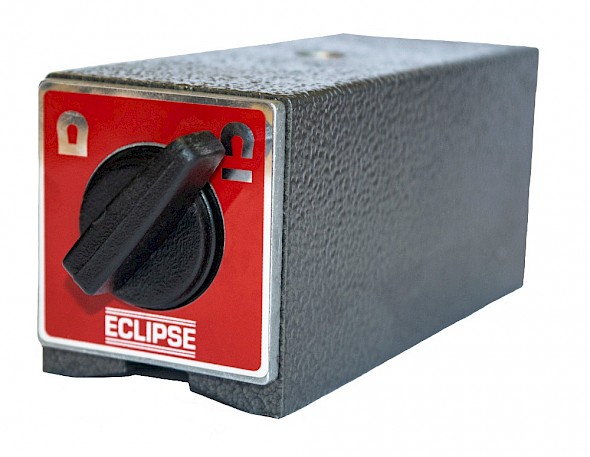

| E905WF/130 | 117 | 50 | 55 | M10 | 130 | 1.900 |
