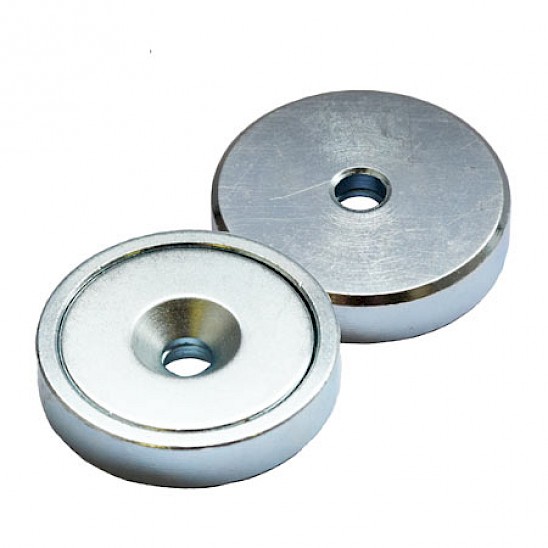

Neodymium Shallow Pot Magnet with Borehole
Ideal for holding, retrieval, recovery applications
- Counterbore provides access for securing with a bolt
- Zinc plated body for corrosion protection
- Diameters available from 16mm to 42mm
- Magnetic pull forces up to 32Kg
产品型号
| 产品型号 | Diameter (mm) | Thickness (mm) | Hole in Body (mm) | Hole in Magnet (mm) | Depth (mm) | Weight (g) | Pull Force (kg) | Units per Pack |
|---|---|---|---|---|---|---|---|---|
| E1010/NEO | 16 | 5 | 3.5 | 6.5 | 3.8 | 9.9 | 4 | 20 |
| E1011/NEO | 20 | 7 | 4.5 | 8 | 5.5 | 13 | 6 | 10 |
| E1012/NEO | 25 | 8 | 5.5 | 9 | 6 | 29.1 | 14 | 10 |
| E1013/NEO | 32 | 8 | 5.5 | 9 | 5.5 | 36 | 23 | 10 |
| E1013/NEO | 42 | 9 | 6.5 | 11 | 6 | 52 | 32 | 5 |
