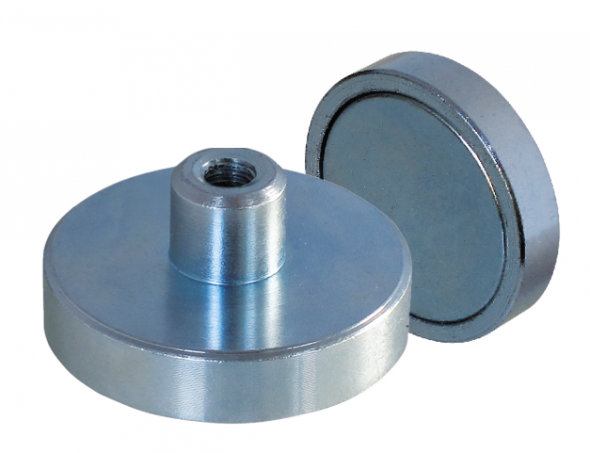

Neodymium Shallow Pot Magnets with Thread Hole
With female threaded hole for easy component mounting
- Strongest magnetic performance
- Zinc plated body
- N35 grade nickel plated magnet material
- 80°C max operating temperature
产品概览 - Neodymium Shallow Pot Magnets with Thread Hole
Internal Threaded Stud Pot Magnet / Female Threaded Stud Pot Magnet
The internal threaded stud pot magnet is also known as a female threaded stud pot magnet. They consist of a ferromagnetic mild steel cup containing a magnet (usually a disc magnet) with a ferromagnetic mild steel stud / boss / bush mounting at the back of the pot magnet into which a threaded hole has been made.
These Neodymium pot magnets are known as female threaded stud pot magnets because the internal threaded hole could take pot magnets with threaded bar at the back (external threaded stud pot magnets / male threaded stud pot magnets) as well as bolts. Because the mild steel is stud / boss is threaded there is decent thread length allowing reasonably high torque to be applied to securely hold each pot magnet in place. .
产品型号
| 产品型号 | Diameter (mm) | Thickness* (mm) | Total Height (mm) | Thread Size (mm) | Ferrule Outer Dia. (mm) | Weight (g) | Pull Force (kg) | Units per pack |
|---|---|---|---|---|---|---|---|---|
| E770NEO | 6 | 4.5 | 11.5 | M3 | 6 | 2.7 | 0.5 | 20 |
| E771NEO | 8 | 4.5 | 11.5 | M3 | 6 | 3.5 | 1.3 | 20 |
| E772NEO | 10 | 4.5 | 11.5 | M3 | 6 | 4.5 | 2.5 | 20 |
| E773NEO | 13 | 4.5 | 11.5 | M3 | 6 | 7.5 | 6 | 20 |
| E774NEO | 16 | 4.5 | 11.5 | M4 | 8 | 13.2 | 9.5 | 20 |
| E775NEO | 20 | 6 | 13 | M4 | 8 | 16.5 | 14 | 10 |
| E776NEO | 25 | 7 | 14 | M4 | 8 | 34 | 20 | 10 |
| E777NEO | 32 | 7 | 15.5 | M5 | 10 | 48 | 35 | 5 |
